Ultra low Quiescent current linear voltage regulator with 1.8V fixed output voltage
DSCORE0102H-SL180G is a linear voltage regulator with dropout voltage as low as 500mV. It takes 3.0V to 3.6V input voltage. Outputs 1.8V +/-7% voltage and supplies up to 30 mA output current.
DSCORE0102H-SL180G has good power supply rejection rate, Very low quiescent current, very low temperature coefficient, and very good line & load regulation. A bandgap reference voltage circuit is included. Both LDO and bandgap circuits are designed to be seamlessly embedded into inline IO ring.
DSCORE0102H-SL180G is silicon-proven in Silterra 0.18um CMOS Logic Generic process (CL180G), has small area and very low power consumption, and easy to be integrated in SoC with complete set of documentation and database included.
DSCORE0102H-SL180G has good power supply rejection rate, Very low quiescent current, very low temperature coefficient, and very good line & load regulation. A bandgap reference voltage circuit is included. Both LDO and bandgap circuits are designed to be seamlessly embedded into inline IO ring.
DSCORE0102H-SL180G is silicon-proven in Silterra 0.18um CMOS Logic Generic process (CL180G), has small area and very low power consumption, and easy to be integrated in SoC with complete set of documentation and database included.
查看 Ultra low Quiescent current linear voltage regulator with 1.8V fixed output voltage 详细介绍：
- 查看 Ultra low Quiescent current linear voltage regulator with 1.8V fixed output voltage 完整数据手册
- 联系 Ultra low Quiescent current linear voltage regulator with 1.8V fixed output voltage 供应商

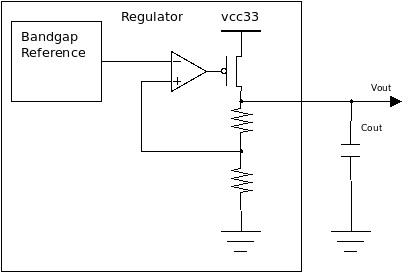

Block Diagram of the Ultra low Quiescent current linear voltage regulator with 1.8V fixed output voltage
