ULP Bandgap Reference - Ultra Low Current (150nA) Silterra 0.18 μm

This macro-cell is an ultra low power voltage reference generator core designed for SilTerra 0.18µm CL180G CMOS technology. The core is ideal as a general purpose reference voltage in applications where power consumption is critical. The circuit generates an unbuffered 1180mV, temperature compensated bandgap voltage reference (47ppm/ C). Internal start-up circuit allows that the reference voltage is available as soon as the power supply ramps up, so that no enable/disable function is necessary to start-up the circuit. The core is easily re-targeted to any other CMOS technology.

特色

Ultra low power (ULP) bandgap reference
Vre f =1.18V ±3.5% (without trimming)
Current consumption below 150nA in active mode
Supply voltage: 1.4–2.0V
Automatic start-up as soons as power supply starts
Indicative area: 0.004mm2

可交付内容

Datasheet/Integration Guide
HDL Model
Flat GDSII database/LVS netlist
Customer Support

应用

Passive/active RFID tag ICs
Battery powered equipment
Energy Harvesting ICs
Hearing Aids

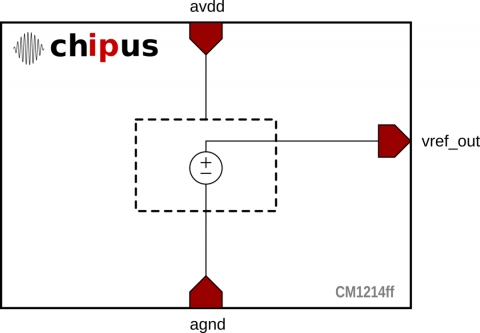

Block Diagram of the ULP Bandgap Reference - Ultra Low Current (150nA) Silterra 0.18 μm

ULP Bandgap Reference - Ultra Low Current (150nA) Silterra 0.18 μm Block Diagam
