ULP 12 Bits, 35 kS/s SAR Analog to Digital Converter
CT22406 is a 12-bit 35 kS/s Analog to Digital converter designed to deliver best in class performances in term of power consumption.
It is implemented employing SAR architecture.
A measurement Front-End section, to be customized according to the customer specifications, converts and adapt to the ADC range Voltage, Current and Temperature Sensors outputs from different ranges.
The IP includes a trimmable internal high accuracy voltage reference generator.
With 65uA total current consumption the figure of merit of the ADC is 7 pJ/step.
It is implemented employing SAR architecture.
A measurement Front-End section, to be customized according to the customer specifications, converts and adapt to the ADC range Voltage, Current and Temperature Sensors outputs from different ranges.
The IP includes a trimmable internal high accuracy voltage reference generator.
With 65uA total current consumption the figure of merit of the ADC is 7 pJ/step.
查看 ULP 12 Bits, 35 kS/s SAR Analog to Digital Converter 详细介绍：
- 查看 ULP 12 Bits, 35 kS/s SAR Analog to Digital Converter 完整数据手册
- 联系 ULP 12 Bits, 35 kS/s SAR Analog to Digital Converter 供应商

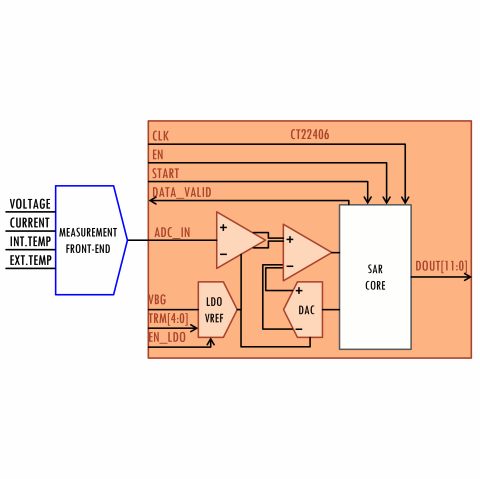

Block Diagram of the ULP 12 Bits, 35 kS/s SAR Analog to Digital Converter
SAR; ULP; Low; Power; ADC; IP
