UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6
The Universal Flash Storage 2.0 (UFS 2.0) is a simple but high performance, serial interface primarily used in mobile systems, between host processing and nonvolatile eXecute-In-Place (XIP) or mass storage memory devices.
Mobile phones, UMPC, DSC, PMP are some of the typical applications for UFS Host Controller IP. Majority of these applications require mass storage and bootable storage memory with an option for an external card.
The UFS 2.0 Host Controller IP incorporates the latest UFS Host Controller Interface (HCI) version 2.0. The MIPI M-PHY® HS-G3 IP is available in GDSII format for a variety of process technologies and MIPI UniProSM version 1.6 link layer with support for multi-lane operation and the optional Unified Memory Architecture (UMA) implementation.
Mobile phones, UMPC, DSC, PMP are some of the typical applications for UFS Host Controller IP. Majority of these applications require mass storage and bootable storage memory with an option for an external card.
The UFS 2.0 Host Controller IP incorporates the latest UFS Host Controller Interface (HCI) version 2.0. The MIPI M-PHY® HS-G3 IP is available in GDSII format for a variety of process technologies and MIPI UniProSM version 1.6 link layer with support for multi-lane operation and the optional Unified Memory Architecture (UMA) implementation.
特色
- JEDEC UFS 2.1 and UFS HCI 2.0 Compliant
- Supports high performance M-PHY v3.1 type-1
- 2 lanes @ 5.9 Gbps per lane
- UniPro v1.6 link layer
- Definable write-protect group size
- Boot mode operation
- Device enumeration and discovery
- Background operation
- Secure Erase and Trim operations enhance security
- Write-protect options include permanent and power-on protection
优势
- RMM-compliant synthesizable RTL design in Verilog
- Easy-to-use test environment
- Synthesis scripts
- Technical documents
可交付内容
- RTL Source code
- Synthesis scripts
- Test Environment
- Technical documents

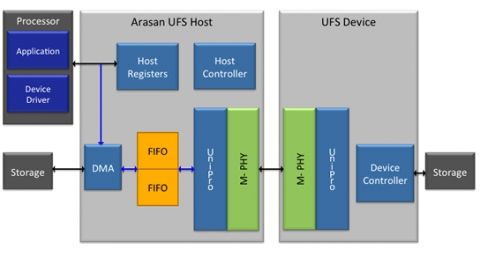

Block Diagram of the UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6
Video Demo of the UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6
UFS 2.1 Host Controller
查看 UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6 详细介绍：
- 查看 UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6 完整数据手册
- 联系 UFS 2.1 Host Controller compatible with M-PHY 3.1 and UniPro 1.6 供应商
