TSN Ethernet Endpoint Controller
The TSN-EP implements a configurable controller meant to ease the implementation of endpoints for networks complying to the Time Sensitive Networking (TSN) standards. It integrates hardware stacks for timing synchronization (IEEE 802.1AS) and traffic shaping (IEEE 802.1Qav and 802.1Qbv), and a low-latency Ethernet MAC.
The controller core is designed to enable high-precision timing synchronization and flexible yet accurate traffic scheduling. Requiring minimal software assistance for its initialization, it features extremely low and deterministic ingress and egress latencies, and simplifies the development of time-aware applications. While operating autonomously, the TSN-EP provides the system with timing information (time-stamps, alarms, etc.) that is typically required for the operation of a TSN network endpoint device. Furthermore, it allows the system to define and tune in real time the traffic shaping parameters according to an application’s requirements.
The TSN-EP uses standard AMBA® or Avalon® interfaces to ease integration. Its configuration and status registers are accessible via a 32-bit-wide AXI4-Lite or Avalon-MM bus, and packet data are input and output via AXI-Streaming or Avalon ST interfaces with 8-bit data buses.
The TSN-VIP TSN Ethernet Verification IP package is available for this core.
The TSN-EP is designed with industry best practices, and is available in synthesizable RTL (Verilog 2001) source code or as a targeted FPGA netlist. Deliverables provide everything required for a successful implementation, including sample scripts, an extensive testbench, and comprehensive documentation.
The controller core is designed to enable high-precision timing synchronization and flexible yet accurate traffic scheduling. Requiring minimal software assistance for its initialization, it features extremely low and deterministic ingress and egress latencies, and simplifies the development of time-aware applications. While operating autonomously, the TSN-EP provides the system with timing information (time-stamps, alarms, etc.) that is typically required for the operation of a TSN network endpoint device. Furthermore, it allows the system to define and tune in real time the traffic shaping parameters according to an application’s requirements.
The TSN-EP uses standard AMBA® or Avalon® interfaces to ease integration. Its configuration and status registers are accessible via a 32-bit-wide AXI4-Lite or Avalon-MM bus, and packet data are input and output via AXI-Streaming or Avalon ST interfaces with 8-bit data buses.
The TSN-VIP TSN Ethernet Verification IP package is available for this core.
The TSN-EP is designed with industry best practices, and is available in synthesizable RTL (Verilog 2001) source code or as a targeted FPGA netlist. Deliverables provide everything required for a successful implementation, including sample scripts, an extensive testbench, and comprehensive documentation.
查看 TSN Ethernet Endpoint Controller 详细介绍：
- 查看 TSN Ethernet Endpoint Controller 完整数据手册
- 联系 TSN Ethernet Endpoint Controller 供应商

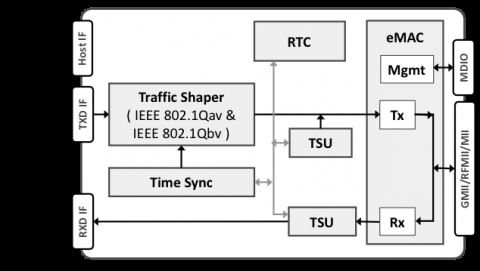

Block Diagram of the TSN Ethernet Endpoint Controller
