Timer/Counter with APB Interface
The Timer-APB core is a 32-bit counter/timer with an APB interface that can be used to schedule periodic tasks, and can act as a high precision time reference.
The timer supports three modes of operation: One-shot, auto-restart and continuous. In one-shot mode the counter runs until it reaches a user-defined value and it is then automatically disabled. In auto-restart mode the counter will reset itself and continue counting after reaching a user-defined value. In continuous mode, the counter is free-running and no special action is taken by the core.
Furthermore, the core can generate an interrupt every time the counter reaches a user defined value. This allows the host to use the core to get one-time trigger at a time, or periodic triggers.
Via a 32-bit wide APB3 interface, the host processor can choose the operation mode, configure the interrupt-generation, pause or resume the timer, read or write the timer value, and program the prescaler.
The prescaler allows trading timer accuracy for a wider timer range. Without the use of the prescaler, the 32-bit counter can generate a trigger after or every 232-1 clock cycles. The prescaler allows to further extend this time period. The programmable prescaler value will determine the number of clock cycles after which the counter/timer will be incremented.
The core is designed so that the timer and the APB interface operate on different and unrelated clocks. Furthermore, the core provides two interrupt output signals: one synchronous to the APB clock and one synchronous the timer clock.
The Timer-APB core is rigorously verified and available in RTL source or as a targeted FPGA netlist. Its deliverable includes a testbench, synthesis and simulation scripts and comprehensive user documentation.
The timer supports three modes of operation: One-shot, auto-restart and continuous. In one-shot mode the counter runs until it reaches a user-defined value and it is then automatically disabled. In auto-restart mode the counter will reset itself and continue counting after reaching a user-defined value. In continuous mode, the counter is free-running and no special action is taken by the core.
Furthermore, the core can generate an interrupt every time the counter reaches a user defined value. This allows the host to use the core to get one-time trigger at a time, or periodic triggers.
Via a 32-bit wide APB3 interface, the host processor can choose the operation mode, configure the interrupt-generation, pause or resume the timer, read or write the timer value, and program the prescaler.
The prescaler allows trading timer accuracy for a wider timer range. Without the use of the prescaler, the 32-bit counter can generate a trigger after or every 232-1 clock cycles. The prescaler allows to further extend this time period. The programmable prescaler value will determine the number of clock cycles after which the counter/timer will be incremented.
The core is designed so that the timer and the APB interface operate on different and unrelated clocks. Furthermore, the core provides two interrupt output signals: one synchronous to the APB clock and one synchronous the timer clock.
The Timer-APB core is rigorously verified and available in RTL source or as a targeted FPGA netlist. Its deliverable includes a testbench, synthesis and simulation scripts and comprehensive user documentation.
查看 Timer/Counter with APB Interface 详细介绍：
- 查看 Timer/Counter with APB Interface 完整数据手册
- 联系 Timer/Counter with APB Interface 供应商

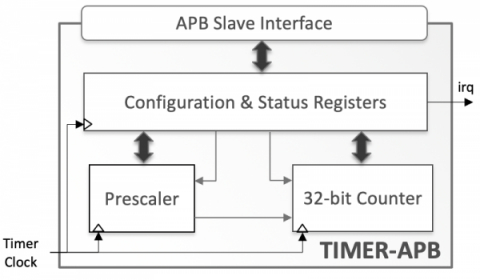

Block Diagram of the Timer/Counter with APB Interface
