Temperature Sensor
The asicNorth ANTEMPSNS0100 is a fully integrated, high resolution temperature sensor ADC with selectable outputs of 9‐bits, 16‐bits, 17‐bits, or 18
bits. The ANTEMPSNS0100 has a temperature sensing range of 165C (‐40C to 125C) with an accuracy of 7C and resolutions between 1.024 C and 0.002C. The conversion rate can also be controlled by internal clock dividing circuits.
bits. The ANTEMPSNS0100 has a temperature sensing range of 165C (‐40C to 125C) with an accuracy of 7C and resolutions between 1.024 C and 0.002C. The conversion rate can also be controlled by internal clock dividing circuits.
查看 Temperature Sensor 详细介绍：
- 查看 Temperature Sensor 完整数据手册
- 联系 Temperature Sensor 供应商

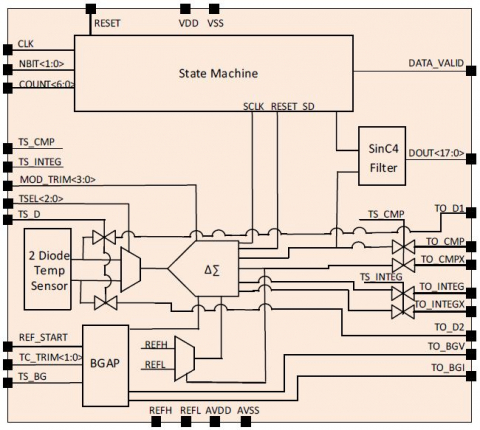

Block Diagram of the Temperature Sensor
