SRC-Pro : 24-bit -130dB THD+N Multi-Channel Audio Asynchronous Sample Rate Converter
The ASRC-pro can perform common sample rate conversions with less than -130 dB of Total Harmonic Distortion plus Noise (THD+N) and has a Dynamic range of 131 dB, supporting input data processing of up to 24-bit resolution.
Coreworks ASRC series are implemented to support several key industry interfaces: TDM parallel, TDM serial, Parallel, I2S, SPDIF-AES3.
Coreworks offers a broad range of asynchronous sample rate converters targeted for variety of audio applications.
查看 SRC-Pro : 24-bit -130dB THD+N Multi-Channel Audio Asynchronous Sample Rate Converter 详细介绍:
- 查看 SRC-Pro : 24-bit -130dB THD+N Multi-Channel Audio Asynchronous Sample Rate Converter 完整数据手册
- 联系 SRC-Pro : 24-bit -130dB THD+N Multi-Channel Audio Asynchronous Sample Rate Converter 供应商

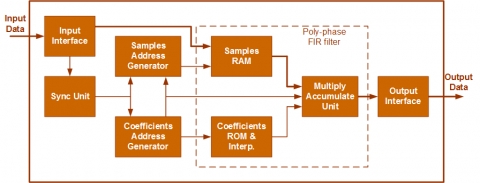

Block Diagram of the SRC-Pro : 24-bit -130dB THD+N Multi-Channel Audio Asynchronous Sample Rate Converter
