The SNOW3G IP core is 3GPP confidentiality and integrity algorithms (UEA2/UIA2) stream cipher for telecommunication applications, requiring high performance with reduced silicon resources. It is optimized for maximum throughput and minimum latency.
The unique architecture enables a high level of flexibility. The throughput and features unique to each application can be taken into account in order to select the most optimal configuration of the implemented IP.
Standardized AXI-4 and AHB (optional) I/O simplifies system integration. All our IP cores are delivered with software drivers to simplify ASIC or FPGA integration.
We are also offering other 3GPP IP cores, such as ZUC (BA421) and KASUMI (BA422).
- ASIC and FPGA
- ETSI specifications compliant
- UEA2 (confidentiality)
- UIA2 (integrity)
- Data interface: AMBA (AXI/AHB) with optional DMA
- Control interface: APB/AXI4-lite
- Optimized for maximum throughput and minimum latency
- Netlist or RTL
- Scripts for synthesis
- Self-checking TestBench based on FIPS vectors
- 3GPP mobile telephony (GSM, UMTS, LTE, 5G)
- Secure mobile communications

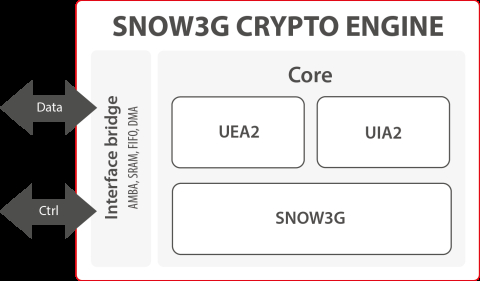

Block Diagram of the SNOW3G Crypto Engine
