SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation
The intoPIX SMPTE 2110-22 Sub-system IP-cores (TX & RX) are combining the IPX-RTP-XS cores for JPEG XS RTP packetization / depacketization and the intoPIX JPEG XS codecs, namely the IPX-TicoXS or the IPX-TicoXS FIP IP-cores. This solution is ideal for implementers as it provides a fully integrated design, compliant with the JPEG-XS video transport over RTP standard, SMPTE 2110, IPMX and VSF TR08.
The intoPIX SMPTE 2110-22 Sub-system IP-cores are ideal to enable any existing SMPTE ST 2110 'uncompressed' FPGA video design to rapidly support SMPTE ST 2110-22 "compressed video" , as a almost 'plug and play' solution. Moreover, it can easily integrates with 2110 cores available from third party IP providers.
The intoPIX SMPTE 2110-22 Sub-system IP-cores are ideal to enable any existing SMPTE ST 2110 'uncompressed' FPGA video design to rapidly support SMPTE ST 2110-22 "compressed video" , as a almost 'plug and play' solution. Moreover, it can easily integrates with 2110 cores available from third party IP providers.
查看 SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation 详细介绍：
- 查看 SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation 完整数据手册
- 联系 SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation 供应商

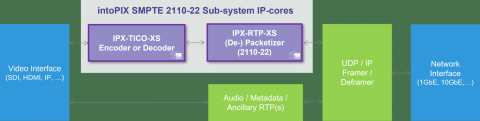

Block Diagram of the SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation
Video Demo of the SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation
The IPX-RTP-XS IP-cores perform the RTP packetization/depacketization of streams containing video compressed with JPEG XS. The IP-cores can directly be interfaced with the TICO-XS encoder & decoder IP-cores, in full compliance with standardized JPEG XS transport over RTP.
The IPX-RTP-XS IP-cores are ideal to rapidly enable any existing uncompressed SMPTE ST 2110 workflow to also support the compressed SMPTE ST 2110-22 using JPEG XS over RTP.
