Small footprint, low power, Power on Reset for Silterra CL180G
Power on Reset IP is designed to generate global reset signal depending on 3.3V Power Supply. The output nReset is low while vcc33 is detected lower than Vth_vcc33_up, the upper threshold of comparator. Once vcc33 rise higher than Vth_vcc33_up the signal nReset goes high until vcc33 falls lower than Vth_33_dn, the lower threshold of comparator. At initial power on nReset is guaranteed to be held low for dT_nReset_up.
查看 Small footprint, low power, Power on Reset for Silterra CL180G 详细介绍：
- 查看 Small footprint, low power, Power on Reset for Silterra CL180G 完整数据手册
- 联系 Small footprint, low power, Power on Reset for Silterra CL180G 供应商

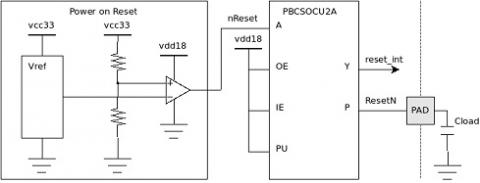

Block Diagram of the Small footprint, low power, Power on Reset for Silterra CL180G
