SLVS-EC Interface for FPGA
SLVS-EC v3.0 Rx IP is an interface IP core that runs on Altera® FPGAs. Using this IP, you can quickly and easily implement products that support the latest SLVS-EC standard v3.0. You will also receive an "Evaluation kit" for early adoption.
* Altera® FPGAs can receive signals directly from the SLVS-EC Interface.
* Compatible with the latest SLVS-EC Specification Version 3.0.
* Supports powerful De-Skew function. Enables board design without considering Skew that occurs between lanes.
* "Evaluation kit”(see below) is available for speedy evaluation at the actual device level.
* Altera® FPGAs can receive signals directly from the SLVS-EC Interface.
* Compatible with the latest SLVS-EC Specification Version 3.0.
* Supports powerful De-Skew function. Enables board design without considering Skew that occurs between lanes.
* "Evaluation kit”(see below) is available for speedy evaluation at the actual device level.
查看 SLVS-EC Interface for FPGA 详细介绍：
- 查看 SLVS-EC Interface for FPGA 完整数据手册
- 联系 SLVS-EC Interface for FPGA 供应商

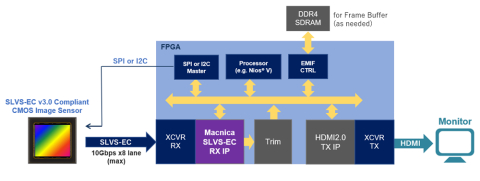

Block Diagram of the SLVS-EC Interface for FPGA
