Universal asynchronous receiver and transmitter (UART) using the RS232 protocol are often used to connect peripheral devices to a central controller.

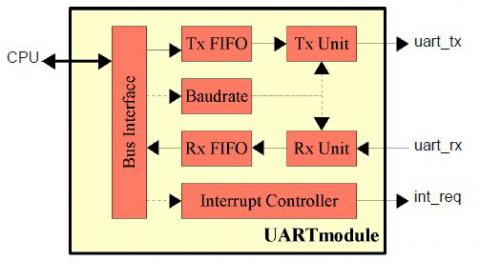

The UARTmodule has one receive and one transmit channel, receive and transmit buffers, an interrupt controller as well as a local bus interface. The built-in receive buffer is configurable in depth, therefore, enabling a gate count and application optimized implementation. The baudrate generator uses a innovative digital controlled oscillator (DCO) to generate baudrates over a wide frequency range. With a system clock of 8MHz, all baudrates from 1200 baud to 115.2 kbaud have an accuracy of better than 0.1%!
To improve glitch rejection, the receiver uses a 3-point input sampling. Format and parity errors are detected and reported.
