Serial Controller Interface
The SCI Slave is a synthesizable, flexible, and structured VHDL implementation of a Serial Controller Interface (SCI) that uses a two-wire bus for communicating between integrated circuits or standard peripherals like smart LCDs and keypads.
The SCI Slave complies with the definition of the ‘Inter-Integrated Circuit Bus’ (I2C). It is intended to be used as an interface block between the I2C buslines (SDA,SCL) and two mailbox memories. A local Mail-bus interface consisting of data, address and control lines allows you to interface registers or RAM’s up to a size of 256 bytes.
The SCI Slave contains the entire physical and data link layers, allowing to handle bus timing and frame generation/extraction, and thus reducing overhead from the system application.
The SCI Slave complies with the definition of the ‘Inter-Integrated Circuit Bus’ (I2C). It is intended to be used as an interface block between the I2C buslines (SDA,SCL) and two mailbox memories. A local Mail-bus interface consisting of data, address and control lines allows you to interface registers or RAM’s up to a size of 256 bytes.
The SCI Slave contains the entire physical and data link layers, allowing to handle bus timing and frame generation/extraction, and thus reducing overhead from the system application.
查看 Serial Controller Interface 详细介绍：
- 查看 Serial Controller Interface 完整数据手册
- 联系 Serial Controller Interface 供应商

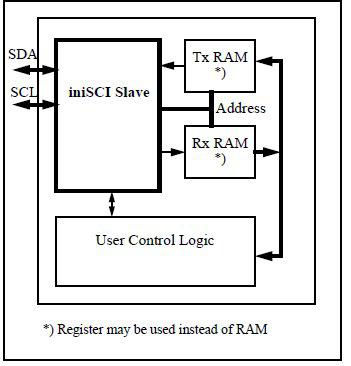

Block Diagram of the Serial Controller Interface
