PVT Sensor
The PVT sensor indicates the junction temperature as a 12-bit binary digital code. It contains a main sensor, remote probes and an Analog-to-Digital Converter (ADC). It is possible to monitor multiple spots via remote probes. It has a resolution of 0.0625℃/1-code and operates within a junction temperature range of -40℃~125℃.
查看 PVT Sensor 详细介绍：
- 查看 PVT Sensor 完整数据手册
- 联系 PVT Sensor 供应商

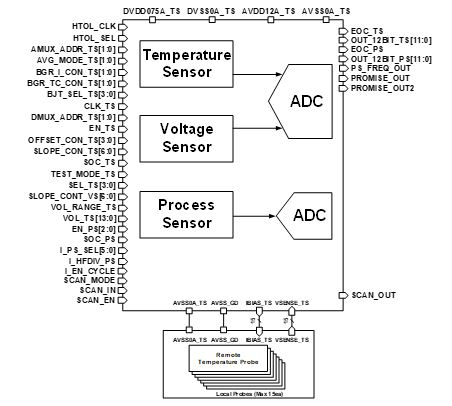

Block Diagram of the PVT Sensor
