RF Transceiver SMIC 55nm
AGP1322 RF Transceiver IP采用SMIC55nm工艺，应用于NB_IOT射频信号收发，兼容3GPP R14 NB_IOT标准，适用bands1, 2, 3，5, 8, 12, 13, 17, 18, 19,20, 26, 28，66频段。IP采用低中频/零中频接收机和IQ直接上变频调制发射机结构,实现低功耗设计，支持2V～3.6V供电电压，接收工作电流10mA，发射14dBm功率时工作电流68mA。
查看 RF Transceiver SMIC 55nm 详细介绍：
- 查看 RF Transceiver SMIC 55nm 完整数据手册
- 联系 RF Transceiver SMIC 55nm 供应商

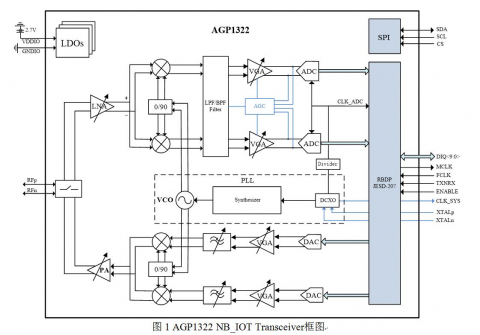

Block Diagram of the RF Transceiver SMIC 55nm
