Retention Alternative Regulator, combines a linear regulator and an ultra-low quiescent regulator for sleep mode
The RAR-iLR-qLR.01 Retention Alternating Regulator enables this combination embedding two regulation sub-components: a linear regulztor for logic (iLR) and an ultra low quiescent linear regulator (qLR). A Regulation Control Unit (RCU) manages booting and transitions between each regulation functions.
查看 Retention Alternative Regulator, combines a linear regulator and an ultra-low quiescent regulator for sleep mode 详细介绍：
- 查看 Retention Alternative Regulator, combines a linear regulator and an ultra-low quiescent regulator for sleep mode 完整数据手册
- 联系 Retention Alternative Regulator, combines a linear regulator and an ultra-low quiescent regulator for sleep mode 供应商

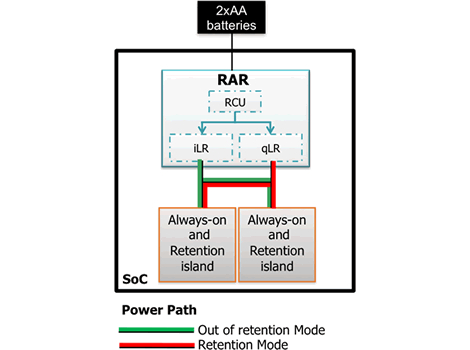

Block Diagram of the Retention Alternative Regulator, combines a linear regulator and an ultra-low quiescent regulator for sleep mode
