PWM sigma-delta modulator
The PWM sigma-delta modulator is a special type of 1-bit sigma-delta modulator that produces a pulse width modulated (PWM) output signal with a fixed repetition frequency. A fixed repetition frequency makes the output signal insensitive to typical problems associated with (continuous time) sigma-delta converters, such as non-linear inter symbol interference (ISI) and kickback noise on the reference of the DAC.
The PWM sigma-delta modulator implements a digital PWM sigma-delta modulator consisting of a fifth-order loop filter, followed by a 16 taps moving average filter, a sawtooth carrier injection (with a frequency of fCLK/16) and a 1-bit quantizer.
The PWM sigma-delta modulator implements a digital PWM sigma-delta modulator consisting of a fifth-order loop filter, followed by a 16 taps moving average filter, a sawtooth carrier injection (with a frequency of fCLK/16) and a 1-bit quantizer.
查看 PWM sigma-delta modulator 详细介绍：
- 查看 PWM sigma-delta modulator 完整数据手册
- 联系 PWM sigma-delta modulator 供应商

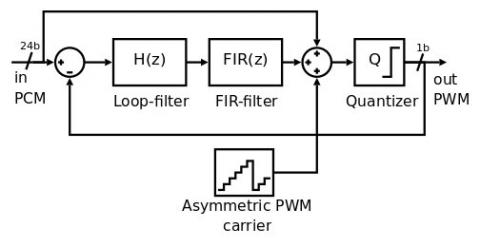

Block Diagram of the PWM sigma-delta modulator
