Programmable Threshold Analog Comparator UMC
agileCMP GP – Programmable-Threshold Comparator
The agileCMP GP programmable-threshold comparator features a user-selectable (enable/disable) hysteresis as well as programmable threshold with 10mV step size, a latched output as well as an active (unlatched) output. With a focus on long battery life, the agileCMP GP can be used to monitor external analog signals and enable wake-up events as is essential in many modern SoCs. The agileCMP GP programmable-threshold comparator is ideally suited for interrupt generation in applications such as in IoT, Security, Automotive, AI and general SoCs and ASICs.
The agileCMP GP programmable-threshold comparator features a user-selectable (enable/disable) hysteresis as well as programmable threshold with 10mV step size, a latched output as well as an active (unlatched) output. With a focus on long battery life, the agileCMP GP can be used to monitor external analog signals and enable wake-up events as is essential in many modern SoCs. The agileCMP GP programmable-threshold comparator is ideally suited for interrupt generation in applications such as in IoT, Security, Automotive, AI and general SoCs and ASICs.
查看 Programmable Threshold Analog Comparator UMC 详细介绍：
- 查看 Programmable Threshold Analog Comparator UMC 完整数据手册
- 联系 Programmable Threshold Analog Comparator UMC 供应商

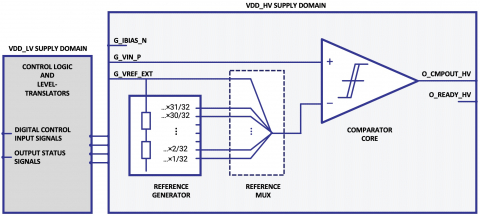

Block Diagram of the Programmable Threshold Analog Comparator UMC
