Profinet Switch
The SoC-e PROFINET Switch IP core is an Intellectual Property (IP) Core for FPGAs. It co-works with a PROFINET software stack running on an external or an internal CPU (Microblaze or ARM). This IP is an ideal solution for implementing flexible Profinet Automation equipments. The reference design implements PROFINET RT CC-B Line Structure integrating PORT.DE Profinet Software Stack.
Profinet Switch IP Core key functionalities are:
* Port A and Port B: they are connected to a Profinet bus. They connect the equipment to a Line topology network.
* Port C: it offers a conventional Ethernet link to any on-board or external CPU in order to receive Profinet frames.
Profinet Switch IP Core key functionalities are:
* Port A and Port B: they are connected to a Profinet bus. They connect the equipment to a Line topology network.
* Port C: it offers a conventional Ethernet link to any on-board or external CPU in order to receive Profinet frames.
查看 Profinet Switch 详细介绍：
- 查看 Profinet Switch 完整数据手册
- 联系 Profinet Switch 供应商

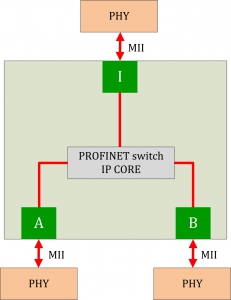

Block Diagram of the Profinet Switch
