PCIe 6.0 PHY (5nm)
The PCIe PHY IP consists of hardmacro PMA and softmacro PMD compliant to PCIe Base 6.0 specification. This IP offers a cost-effective and low-power solution using 5nm FinFet CMOS technology. It includes all ESD I/Os and bump pads, and supports extensive built-in self test features such as loopback and scan.
查看 PCIe 6.0 PHY (5nm) 详细介绍：
- 查看 PCIe 6.0 PHY (5nm) 完整数据手册
- 联系 PCIe 6.0 PHY (5nm) 供应商

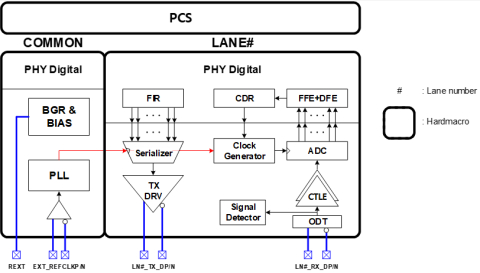

Block Diagram of the PCIe 6.0 PHY (5nm)
