PCIe 3.0 Serdes PHY IP, Silicon Proven in UMC 55SP
The Peripheral Component Interconnect Express Gen3 PHY IP with PIPE 4.3 interface standard supported by this that complies with PCIe 3.0 Base Specification. Low power usage is made possible by the provision of an additional PLL control, reference clock control, and built-in power gating control. The PHY is also quite helpful for a range of situations with various power consumption requirements because the low power mode option is adjustable.
Utilizing a test bench created in Verilog HDL, NCVerilog simulation software is used to verify PCIe PHY operation.
Utilizing a test bench created in Verilog HDL, NCVerilog simulation software is used to verify PCIe PHY operation.
查看 PCIe 3.0 Serdes PHY IP, Silicon Proven in UMC 55SP 详细介绍:
- 查看 PCIe 3.0 Serdes PHY IP, Silicon Proven in UMC 55SP 完整数据手册
- 联系 PCIe 3.0 Serdes PHY IP, Silicon Proven in UMC 55SP 供应商

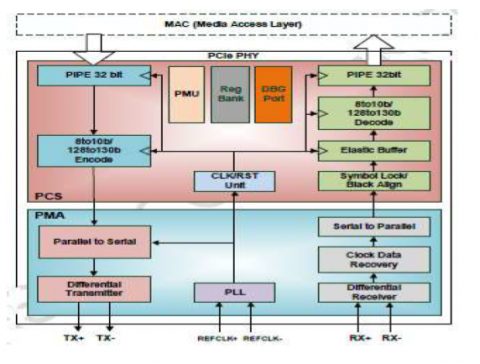

Block Diagram of the PCIe 3.0 Serdes PHY IP, Silicon Proven in UMC 55SP
