PCIe 3.0 Serdes PHY IP,在 TSMC 12FFC 中经过硅验证
PCIe 3.0 PHY IP为高宽带应用提供高性能、多通道功能和低功耗设计。 该设计符合 PIPE 4.3 标准,支持所有 PCIe 3.0 Base 应用。 IP 中包含高速混合信号电路,以支持PCIe 3.0的8Gbps数据速率。PCIe 1.0在2.5Gbps数据速率和PCIe 2.0 在5.0Gbps数据速率都可以被此设计兼容。PCIe3.0 IP设计可以均衡支持TX和RX,满足各种通道环境的需求
查看 PCIe 3.0 Serdes PHY IP,在 TSMC 12FFC 中经过硅验证 详细介绍:
- 查看 PCIe 3.0 Serdes PHY IP,在 TSMC 12FFC 中经过硅验证 完整数据手册
- 联系 PCIe 3.0 Serdes PHY IP,在 TSMC 12FFC 中经过硅验证 供应商

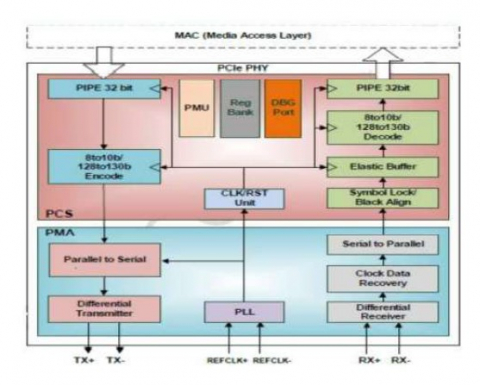

Block Diagram of the PCIe 3.0 Serdes PHY IP,在 TSMC 12FFC 中经过硅验证
