PCIe 3.0 Serdes PHY IP, Silicon Proven in SMIC 40LP
Compliance with the PCIe 3.0 Base Specification is standardized by the PCIe 3.0 PHY IP with PIPE 4.3 interface standard. Because the low power mode option is programmable, the PHY is also particularly useful for a variety of applications with varied power consumption needs. The inclusion of an extra PLL control, reference clock control, and built-in voltage regulation control allows for this Low power utilization. Utilizing a test bench created in Verilog HDL, NCVerilog simulation software is used to verify PCIe PHY operation.
查看 PCIe 3.0 Serdes PHY IP, Silicon Proven in SMIC 40LP 详细介绍：
- 查看 PCIe 3.0 Serdes PHY IP, Silicon Proven in SMIC 40LP 完整数据手册
- 联系 PCIe 3.0 Serdes PHY IP, Silicon Proven in SMIC 40LP 供应商

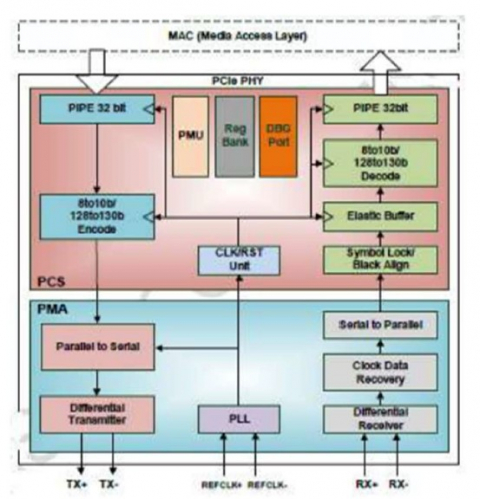

Block Diagram of the PCIe 3.0 Serdes PHY IP, Silicon Proven in SMIC 40LP
