PCI Express Gen 1/2/3/4 Phy
The TRC16024CPA is a four lane Gen 1,2,3,4 PCI Express Physical layer (Phy) Phy IP core, delivering high-speed serial data transmission over controlled impedance transmission media such as copper cable, PCB traces or fiber optics. The device offers support for 2.5/5.0/8.0/16 Gbps PCI Express which include spread spectrum clocking, beacon out of band signaling and deemphasis support. TRC16024CPA operates on 0.8/1.8 V supplies. The IP is capable of transmitting and receiving serial data at 2.5,5.0,8.0,16 Gbps per lane with excellent bit error rate performance.
Each transmit section of the TRC16024CPA contains a low-jitter clock synthesizer, a parallel to serial converter with built in PCS transmit functions, and a CMOS output driver with selectable de-emphasis for use in backplane applications.
Each receive section contains an input limiting amplifier with on-chip terminations and selectable equalization levels, clock/data recovery PLL, and PCS receive functions. Built-in serial and parallel loopback modes. PRBS generator/checker and error detectors aid in support of testing.
The TRC16024CPA requires no external components for its clock synthesizers and clock recovery PLL. Three external resistors are needed to set the proper bias currents for its onchip terminations.
TRC16024CPA has low jitter generation and high jitter tolerance making it ideal for integration in SoCs and ASICs in the presence of multiple clocks and noise. TSMC is available in TSMC 16 nm FFC process and can be ported to other processes.
Each transmit section of the TRC16024CPA contains a low-jitter clock synthesizer, a parallel to serial converter with built in PCS transmit functions, and a CMOS output driver with selectable de-emphasis for use in backplane applications.
Each receive section contains an input limiting amplifier with on-chip terminations and selectable equalization levels, clock/data recovery PLL, and PCS receive functions. Built-in serial and parallel loopback modes. PRBS generator/checker and error detectors aid in support of testing.
The TRC16024CPA requires no external components for its clock synthesizers and clock recovery PLL. Three external resistors are needed to set the proper bias currents for its onchip terminations.
TRC16024CPA has low jitter generation and high jitter tolerance making it ideal for integration in SoCs and ASICs in the presence of multiple clocks and noise. TSMC is available in TSMC 16 nm FFC process and can be ported to other processes.
查看 PCI Express Gen 1/2/3/4 Phy 详细介绍:
- 查看 PCI Express Gen 1/2/3/4 Phy 完整数据手册
- 联系 PCI Express Gen 1/2/3/4 Phy 供应商

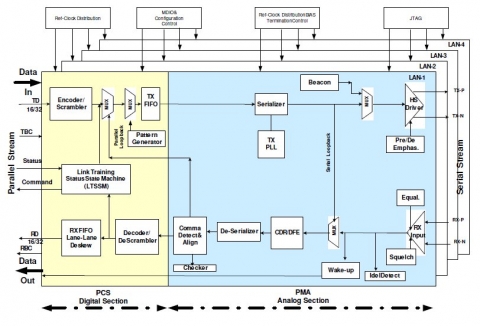

Block Diagram of the PCI Express Gen 1/2/3/4 Phy
