General Description LAN security standard IEEE 802.1ae (MACSec) uses AES cipher in the GCM mode, while the disk/tape encryption standard IEEE P1619 uses the XEX/XTS mode. Since GCM and XEX/XTS share some of their basic components, a combo GCM/XEX/XTS core is not much larger than a dedicated core for either of the modes.
The GXM3 core is tuned for mid-performance P1619 and 802.1ae applications at the data rates of 2-3 Gbps and higher. The core contains the base AES core AES1 and is available for immediate licensing.
The design is fully synchronous and available in both source and netlist form.
- Small size: From 60K ASIC gates (at throughput of 18.2 bits per clock)
- 487 MHz frequency in 90 nm process
- Easily parallelizable to achieve higher throughputs
- Completely self-contained: does not require external memory. Includes encryption, decryption, key expansion and data interface
- Support for Galois Counter Mode Encryption and authentication (GCM) and XTS-AES mode per P1619
- XEX-AES encryption mode
- Cipher Text Stealing (CTS) included
- Flow-through design
- Test bench provided
- LAN security standard IEEE 802.1ae (MACSec) uses AES cipher in the GCM mode, while the disk/tape encryption standard IEEE P1619 uses the XEX mode. Since GCM and XEX share some of their basic components, a combo GCM/XEX core is not much larger than a dedicated core for either of the modes.
- Synthesizable Verilog RTL source
- Verilog testbench (self-checking)
- Vectors for testbench
- User Documentation
- IEEE 802.1ae: LAN switches, routers, NICs
- IEEE P1619: hard drive and tape encryption, SAN, NAS

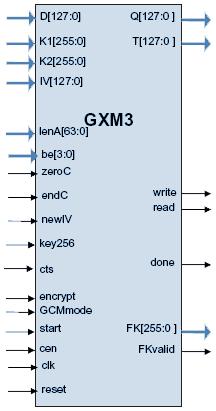

Block Diagram of the P1619/802.1ae (MACSec) GCM/XEX/XTS-AES Core
