ONFI 4.1 PHY IP（硅经TSMC 12FFC验证）
ONFI PHY IP能够通过NAND闪存接口传输信号，或通过Flash控制器IP从NAND Flash接收数据。MDLL为PHY的控制信号设定延迟时间，以便在合适的时间段内访问闪存中的数据。请参考下图，了解ONFI PHY的架构
查看 ONFI 4.1 PHY IP（硅经TSMC 12FFC验证） 详细介绍：
- 查看 ONFI 4.1 PHY IP（硅经TSMC 12FFC验证） 完整数据手册
- 联系 ONFI 4.1 PHY IP（硅经TSMC 12FFC验证） 供应商

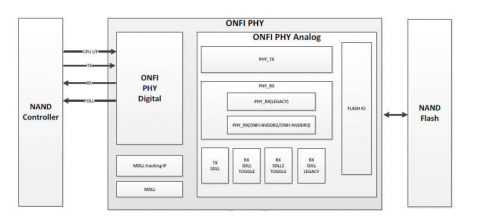

Block Diagram of the ONFI 4.1 PHY IP（硅经TSMC 12FFC验证）
ONFI 4.1 PHY IP IP
