NFC Tag IP for Proximity Integrated Circuit Cards (PICC) and Vicinity Integrated Circuit Cards (VICC) Active/Passive
Our state-of-the-art NFC tag IP in 22 nm CMOS integrates seamlessly with ISO 14443-A, 14443-B, and 15693 standards, making it ideal for both battery-less and battery-operated devices. This technology ensures best-in-class performance and versatility.
The building blocks of CSEM’s NFC tag IP include an analog front-end, which handles energy-efficient communication (RX, TX, and clock recovery, CKR) and energy harvesting (WPT) to power the system. It is fully compatible with all three ISO standards, featuring four dedicated pads (two antenna pads and optional VDDR/VSSR).
The digital baseband is a configurable soft IP that supports ISO 14443A, ISO 14443B, or ISO 15693. It operates in dual modes: autonomous mode for independent NFC command handling and microcontroller mode for streamlined NFC functionality.
The building blocks of CSEM’s NFC tag IP include an analog front-end, which handles energy-efficient communication (RX, TX, and clock recovery, CKR) and energy harvesting (WPT) to power the system. It is fully compatible with all three ISO standards, featuring four dedicated pads (two antenna pads and optional VDDR/VSSR).
The digital baseband is a configurable soft IP that supports ISO 14443A, ISO 14443B, or ISO 15693. It operates in dual modes: autonomous mode for independent NFC command handling and microcontroller mode for streamlined NFC functionality.
查看 NFC Tag IP for Proximity Integrated Circuit Cards (PICC) and Vicinity Integrated Circuit Cards (VICC) Active/Passive 详细介绍:
- 查看 NFC Tag IP for Proximity Integrated Circuit Cards (PICC) and Vicinity Integrated Circuit Cards (VICC) Active/Passive 完整数据手册
- 联系 NFC Tag IP for Proximity Integrated Circuit Cards (PICC) and Vicinity Integrated Circuit Cards (VICC) Active/Passive 供应商

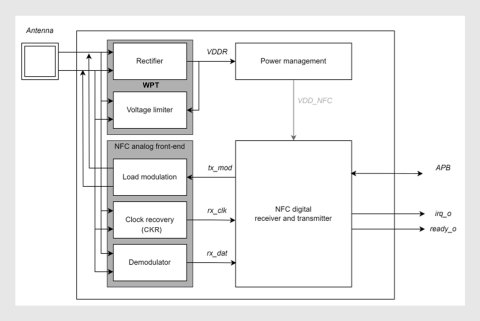

Block Diagram of the NFC Tag IP for Proximity Integrated Circuit Cards (PICC) and Vicinity Integrated Circuit Cards (VICC) Active/Passive
