MPTS demultiplexer
The MVD MPTS Demultiplexer core is a drop-in module that includes the following functions:
• Receives an MPTS input stream and de-multiplexes services according to the PID programming done
• De-multiplexes up to 32 services with up to 8 PIDs per service
• Automatically filters incoming tables (PAT, SDT, EIT , NIT), NULL packet and passed through PMT (if programmed) without modification
• No PCR process is done as no packet is time shifted
• Receives an MPTS input stream and de-multiplexes services according to the PID programming done
• De-multiplexes up to 32 services with up to 8 PIDs per service
• Automatically filters incoming tables (PAT, SDT, EIT , NIT), NULL packet and passed through PMT (if programmed) without modification
• No PCR process is done as no packet is time shifted
特色
- Drop-in module for Xilinx Spartan-6, Virtex-6, Artix-7, Kintex-7, Virtex-7, Zynq
- SPI smart receiver
- CPU interface
- Full synthesizable RTL VHDL design (not delivered) for easy customization
- Design delivered as Netlist
可交付内容
- Datasheet
- Netlist for core generation
- VHDL top file
- VHDL source code : can be delivered as an option under NDA and other specific clauses
应用
- MVD MPTS Demultiplexer may be used in addition to the DVB/ATSC remultiplexer core and IP-TV transmitter for SPTS to IP application.

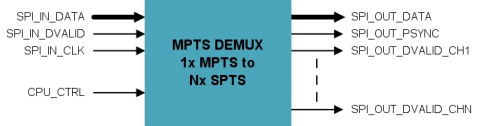

Block Diagram of the MPTS demultiplexer
