MIPI M-PHY in SMIC 90LL
The MXL_MPHY_S_090LL is a high-frequency low-power, low-cost, Physical Layer IP that supports the MIPI Alliance Standard for M-PHY. The IP can be used as a physical layer for many applications, including interfaces for display, camera, audio, video, memory, power management and Baseband to RFIC.
It supports the following standards: CSI-3, DSI-2, Uniport-M (UniPro1.41) LLI and JC-64.1 UFS.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
It supports the following standards: CSI-3, DSI-2, Uniport-M (UniPro1.41) LLI and JC-64.1 UFS.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
查看 MIPI M-PHY in SMIC 90LL 详细介绍：
- 查看 MIPI M-PHY in SMIC 90LL 完整数据手册
- 联系 MIPI M-PHY in SMIC 90LL 供应商

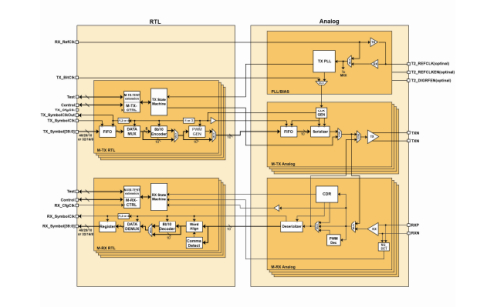

Block Diagram of the MIPI M-PHY in SMIC 90LL
