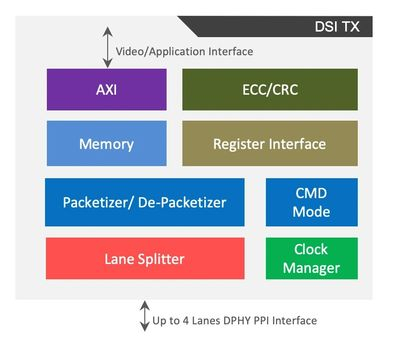

MIPI DSI-2 v2.0 TRANSMITTER FOR COMBO C/DPHY

特色

Compliant with MIPI DSI-2 v2.0 backward compatible to all DSI standards, MIPI D-PHY v3.x, MIPI C-PHY v2.0/2.1
Up to 3 Gsps per trio using C-PHY. 17Gbps in 3 Trios.
Up to 2.5 Gbps per data lane of D-PHY (V2.0). 10Gbps in 4 Lanes
Programmable 1, 2, 3 (C-PHY) or 4 (D-PHY) Data Lane Configuration.
Forward and Reverse Communication
Configurable Virtual Channel up to 4
Operate in continuous and non-continuous clock modes.
Command and Video Mode are supported.
Burst and Non-Burst modes are supported.
Pulse and Event modes supported
Color Modes: 16, 18, 24 and 36 bpp
Display Stream Compression (DSC) Supported
