MIPI DSI-2 RX Controller
The Qualitas DSI-2 Controller delivers high-speed serial connectivity between host processors and display devices. Compliant with MIPI DSI-2 v1.1, this IP includes Receiver (Rx) capabilities over 4 D-PHY data lanes.
The IP supports both command and video modes, ensuring efficient operation across diverse display use cases. It fully implements all three layers defined by the DSI-2 standard: Pixel-to-Byte Packing, Low-Level Protocol, and Lane Management. With a 64-bit core width, the DSI-2 Controller distributes data across 4 lanes via a 16-bit PPI.
Programmable via the APB bus, the DSI-2 Controller includes interrupt ports for status and error monitoring. It has been rigorously function-verified through VIP, ensuring robust performance.
The IP supports both command and video modes, ensuring efficient operation across diverse display use cases. It fully implements all three layers defined by the DSI-2 standard: Pixel-to-Byte Packing, Low-Level Protocol, and Lane Management. With a 64-bit core width, the DSI-2 Controller distributes data across 4 lanes via a 16-bit PPI.
Programmable via the APB bus, the DSI-2 Controller includes interrupt ports for status and error monitoring. It has been rigorously function-verified through VIP, ensuring robust performance.
查看 MIPI DSI-2 RX Controller 详细介绍：
- 查看 MIPI DSI-2 RX Controller 完整数据手册
- 联系 MIPI DSI-2 RX Controller 供应商

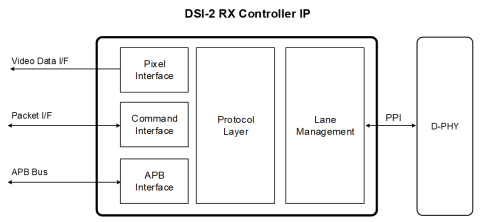

Block Diagram of the MIPI DSI-2 RX Controller
