MIPI D-PHY Universal IP in UMC 40LP
The MXL-DPHY-UNIV is a high-frequency low-power, low-cost, source-synchronous, Physical Layer that supports the MIPI Alliance Standard for D-PHY.
The IP can be configured as a MIPI Master or MIPI Slave optimized for camera interface (CSI-2) and display (DSI) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low powerfunctions are mostly used for control.
The IP can be configured as a MIPI Master or MIPI Slave optimized for camera interface (CSI-2) and display (DSI) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low powerfunctions are mostly used for control.
查看 MIPI D-PHY Universal IP in UMC 40LP 详细介绍：
- 查看 MIPI D-PHY Universal IP in UMC 40LP 完整数据手册
- 联系 MIPI D-PHY Universal IP in UMC 40LP 供应商

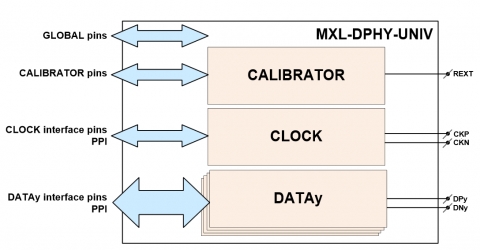

Block Diagram of the MIPI D-PHY Universal IP in UMC 40LP
Video Demo of the MIPI D-PHY Universal IP in UMC 40LP
We demonstrate our customer demo, the Lattice Crosslink FPGA Video Bridge, featuring Mixel's MIPI D-PHY Universal IP.
