MIPI D-PHY Universal IP in UMC 28HPC+
The MXL-DPHY-UNIV-U-28HPC+ is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5. The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 and display interface DSI/DSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
查看 MIPI D-PHY Universal IP in UMC 28HPC+ 详细介绍：
- 查看 MIPI D-PHY Universal IP in UMC 28HPC+ 完整数据手册
- 联系 MIPI D-PHY Universal IP in UMC 28HPC+ 供应商

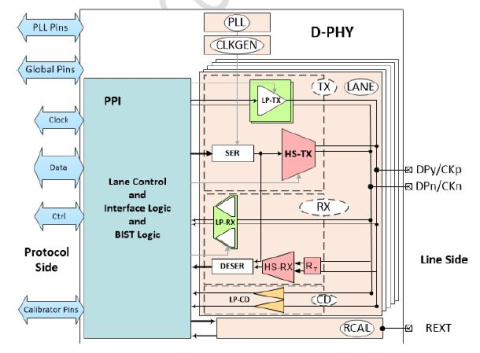

Block Diagram of the MIPI D-PHY Universal IP in UMC 28HPC+
