MIPI D-PHY IP 4.5Gbps in TSMC N7
The MXL-DPHY-DSI-TX-T-N07 is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5. The PHY can be configured as a MIPI Master supporting display interface DSI/DSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications
查看 MIPI D-PHY IP 4.5Gbps in TSMC N7 详细介绍：
- 查看 MIPI D-PHY IP 4.5Gbps in TSMC N7 完整数据手册
- 联系 MIPI D-PHY IP 4.5Gbps in TSMC N7 供应商

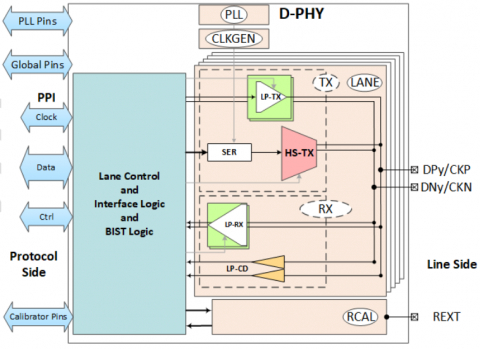

Block Diagram of the MIPI D-PHY IP 4.5Gbps in TSMC N7
