MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP
The MXL-DPHY-CSI-2-TX is a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI Alliance Standard for D-PHY.
The IP is configured as a MIPI master optimized for camera interface applications (CSI-2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
The IP is configured as a MIPI master optimized for camera interface applications (CSI-2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP 详细介绍：
- 查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP 完整数据手册
- 联系 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP 供应商

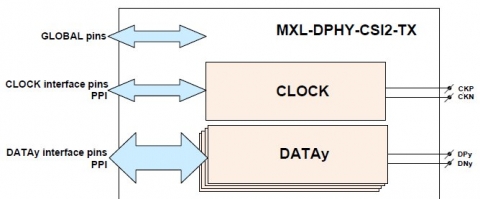

Block Diagram of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP
Video Demo of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 65LP
We demonstrate our customer demo, the Microsoft Azure Kinect DK, featuring the Mixel MIPI D-PHY CSI-2 TX IP.
