MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+
The MXL-DPHY-CSI-2-TX is a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI Alliance Standard for D-PHY. The IP is configured as a MIPI master optimized for camera interface applications (CSI-2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 详细介绍：
- 查看 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 完整数据手册
- 联系 MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+ 供应商

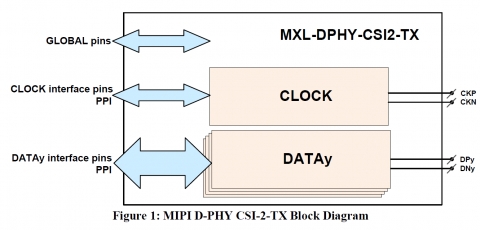

Block Diagram of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+
Video Demo of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 28HPC+
We demonstrate our customer demo, GEO GW5 Warpcam, featuring Mixel's MIPI D-PHY TX and RX IP.
