MIPI D-PHY CSI-2 TX (Transmitter) in GlobalFoundries 22FDX
The MXL-DPHY-CSI-2-TX is a high-frequency low-power, low-cost, source synchronous, Physical Layer supporting the MIPI Alliance Specification for
D-PHY v2.1, which is backward compatible with MIPI Specification for
D-PHY v1.2. The IP is configured as a MIPI master optimized for CSI-2SM
(Camera Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for high-Speed data traffic while low power functions are mostly used for control.
D-PHY v2.1, which is backward compatible with MIPI Specification for
D-PHY v1.2. The IP is configured as a MIPI master optimized for CSI-2SM
(Camera Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for high-Speed data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY CSI-2 TX (Transmitter) in GlobalFoundries 22FDX 详细介绍：
- 查看 MIPI D-PHY CSI-2 TX (Transmitter) in GlobalFoundries 22FDX 完整数据手册
- 联系 MIPI D-PHY CSI-2 TX (Transmitter) in GlobalFoundries 22FDX 供应商

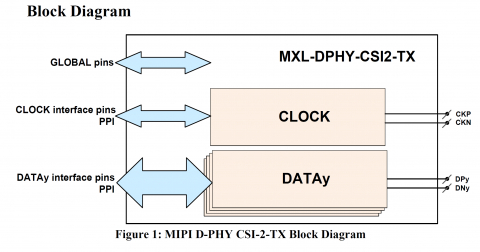

Block Diagram of the MIPI D-PHY CSI-2 TX (Transmitter) in GlobalFoundries 22FDX
