MIPI D-PHY Receiver
The MIPI D-PHY Receiver is a high-frequency low-power, low-cost, source-synchronous, Physical Layer compliant with the MIPI Alliance Standard for D-PHY. The IP is configured as a MIPI slave and consists of 3 lanes: 1 Clock lane and 2 Data lanes, which makes it suitable for camera interface applications (CSI-2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.
查看 MIPI D-PHY CSI-2 RX (Receiver) IP 详细介绍：
- 查看 MIPI D-PHY CSI-2 RX (Receiver) IP 完整数据手册
- 联系 MIPI D-PHY CSI-2 RX (Receiver) IP 供应商

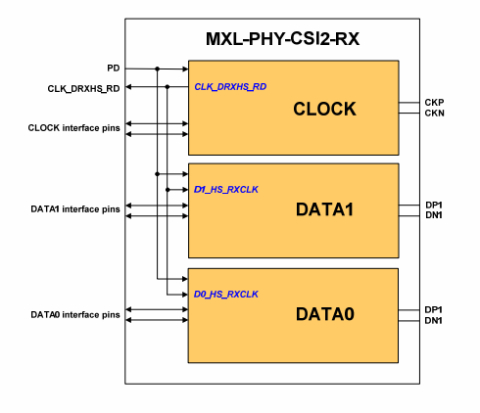

Block Diagram of the MIPI D-PHY CSI-2 RX (Receiver) IP
