MIPI CSI2 v1.3 Transmit Controller
CSI2 Tx v1.3 Transmitter supports two High-Speed serial interface options, D-PHY and C-PHY option. Depending on the chosen serial interface option, C-PHY 1.0 or D-PHY 1.2 is the physical layer block to which the MIPI CSI-2 Transmit controller interfaces for transmission.
CSI2 Tx converts received data into byte stream that follows the generic CSI2 protocol mapping rule. This IP calculates and appends an ECC or CRC value to packet header depending on the choice of the physical layer. For the payload of a long packet CSI2 Tx calculates its CRC value and appends to the packet as a footer and inserts packet Filler bytes after the Packet Footer, if needed. The packet is buffered in a FIFO and synchronized to the High-Speed Transmit clock domain and distributed to one or more data lanes depending on the lane distribution scheme set by the camera sensor. Packets are sent over D-PHY’s or C-PHY’s PPI interface depending on the PHY technology (D-PHY or C-PHY).
查看 MIPI CSI2 v1.3 Transmit Controller 详细介绍:
- 查看 MIPI CSI2 v1.3 Transmit Controller 完整数据手册
- 联系 MIPI CSI2 v1.3 Transmit Controller 供应商

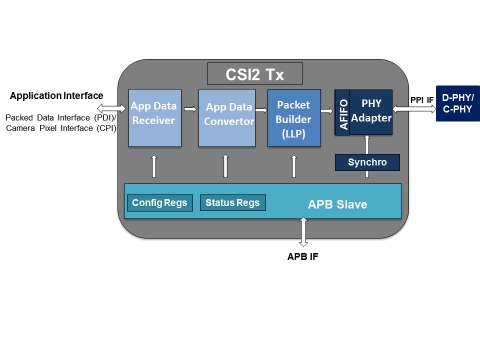

Block Diagram of the MIPI CSI2 v1.3 Transmit Controller
