MIPI CSI-2 controller Receiver v 2.1, Compatible with MIPI C-PHY v1.2 & DPHY v2.1.
The Arasan MIPI CSI-2 Receiver IP Core functions as a MIPI Camera Serial Interface Receiver, between a peripheral device (Camera module) and a host processor (baseband, application engine). The Arasan MIPI CSI-2 Receiver IP provides a standard, scalable, low-power, high-speed interface that supports a wide range of higher image resolutions.
Arasan MIPI CSI-2 Receiver is compliant to MIPI CSI-2 v2.1 specification and supports DPHY v2.1 and the MIPI C-PHY v1.2.
Arasan offers the C-PHY in a combination configuration that supports both C-PHY interfaces and D-PHY interfaces. Our implementation makes efficient use of the high frequency signally pins for a minimal overhead to support both physical interfaces.
Arasan MIPI CSI-2 Receiver is compliant to MIPI CSI-2 v2.1 specification and supports DPHY v2.1 and the MIPI C-PHY v1.2.
Arasan offers the C-PHY in a combination configuration that supports both C-PHY interfaces and D-PHY interfaces. Our implementation makes efficient use of the high frequency signally pins for a minimal overhead to support both physical interfaces.
查看 MIPI CSI-2 controller Receiver v 2.1, Compatible with MIPI C-PHY v1.2 & DPHY v2.1. 详细介绍：
- 查看 MIPI CSI-2 controller Receiver v 2.1, Compatible with MIPI C-PHY v1.2 & DPHY v2.1. 完整数据手册
- 联系 MIPI CSI-2 controller Receiver v 2.1, Compatible with MIPI C-PHY v1.2 & DPHY v2.1. 供应商

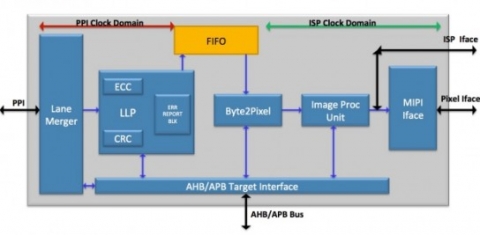

Block Diagram of the MIPI CSI-2 controller Receiver v 2.1, Compatible with MIPI C-PHY v1.2 & DPHY v2.1.
