MIPI C-PHY/D-PHY Combo Universal IP, 4.5Gsps/4.5Gbps in TSMC 22ULP
The MXL-CD-PHY-UNIV-T-22ULP is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5 and C-PHY v2.0 The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 and display interface DSI/DSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
查看 MIPI C-PHY/D-PHY Combo Universal IP, 4.5Gsps/4.5Gbps in TSMC 22ULP 详细介绍：
- 查看 MIPI C-PHY/D-PHY Combo Universal IP, 4.5Gsps/4.5Gbps in TSMC 22ULP 完整数据手册
- 联系 MIPI C-PHY/D-PHY Combo Universal IP, 4.5Gsps/4.5Gbps in TSMC 22ULP 供应商

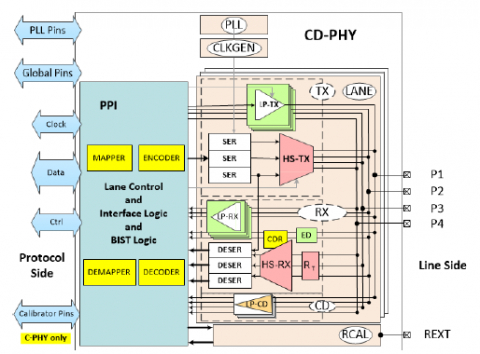

Block Diagram of the MIPI C-PHY/D-PHY Combo Universal IP, 4.5Gsps/4.5Gbps in TSMC 22ULP
