MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP (8.0Gsps/trio, 6.5Gbps/lane) in TSMC 16FFC
The MXL-CDPHY-UNIV-8p0G-T-16FFC is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v3.0 and C-PHY v2.1. The PHY can be configured as a MIPI Primary or MIPI Secondary supporting camera interface CSI-2 and display interface DSI/DSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications.
查看 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP (8.0Gsps/trio, 6.5Gbps/lane) in TSMC 16FFC 详细介绍：
- 查看 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP (8.0Gsps/trio, 6.5Gbps/lane) in TSMC 16FFC 完整数据手册
- 联系 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP (8.0Gsps/trio, 6.5Gbps/lane) in TSMC 16FFC 供应商

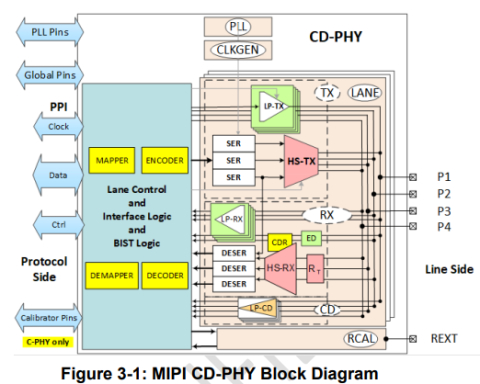

Block Diagram of the MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP (8.0Gsps/trio, 6.5Gbps/lane) in TSMC 16FFC
