MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 4.5Gsps/4.5Gbps
The MXL-CDPHY-4p5G-CSI-2-TX+-16FFC is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5 and C-PHY v2.1. The PHY can be configured as a MIPI Primary supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications. The CSI-2 TX+ is a Mixel proprietary configuration that is optimized to support full-speed production and in-system testing while minimizing area and leakage power.
查看 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 4.5Gsps/4.5Gbps 详细介绍：
- 查看 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 4.5Gsps/4.5Gbps 完整数据手册
- 联系 MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 4.5Gsps/4.5Gbps 供应商

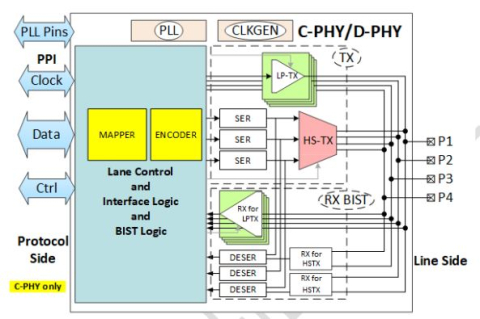

Block Diagram of the MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 4.5Gsps/4.5Gbps
