M8051W V 5.0 Fast 8-bit Microcontroller

The M8051W V5.0 is a high performance core that executes each machine cycle in two clock cycles, giving a clock-for-clock performance that is six times faster than the M8051 and M8052 cores. They remain, however, binary and memory cycle compatible with Intel MCV-51 devices.

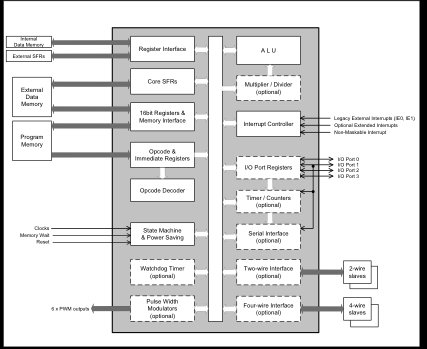

The M8051W incorporates various extended features, such as extra data pointers, support of extra interrupts and interrupt priority levels, optional multiple clock domains for optimising power consumption and support for synchronous memory cells.

The M8051W V5.0 includes many key enhancements and product updates when compared to the Mentor Graphics M8051W+ core offered by IP-Extreme. All product enhancements and support services of the M8051W V5.0 offered by Syntill8, as well as design services, are provided by the original M8051W IP architect.

Three additional peripheral cores that available for use with the M8051W include the M2WIS (a two-wire slave interface), the M4WIS (a four-wire slave interface) and the UDPMAC (a 1Gbps Ethernet MAC with an RGMII interface).
