Low Voltage, Low Power Fractional-N PLL - GlobalFoundries GF22FDX
Perceptia’s DeepSub™ pPLL05 is a low power, low voltage all digital PLL featuring low-jitter and compact area. It is suitable for IoT and embedded clocking applications in systems running below the nominal core voltage at frequencies up to 1.5GHz. It is suitable as a clock source for moderate speed microprocessor blocks and other logic.
To give IoT designers the maximum flexibility in managing power, pPLL05 is very small (< 0.01 sq mm) and low power (< 1.0mW). It is well suited to applications with a single low voltage power supply that the PLL shares with the blocks that use its output clock. Better jitter performance can be achieved if the pPLL05 has its own analog power supply.
pPLL05 integrates easily into any SoC design and includes all the views and models required by back end flows.
The pPLL05 is built using Perceptia’s second generation all digital PLL technology. This robust technology delivers identical performance across many processes, regardless of PVT conditions. It consumes a small fraction of the area of an analog PLL whilst maintaining comparable performance.
pPLL05 can be used as an integer-N PLL or as a fractional-N PLL. The fractional-N mode provides a high flexibility to choose the best combination of input and output clock frequencies at the system level.
Perceptia further provides integration support and offers customization and migration services.
To give IoT designers the maximum flexibility in managing power, pPLL05 is very small (< 0.01 sq mm) and low power (< 1.0mW). It is well suited to applications with a single low voltage power supply that the PLL shares with the blocks that use its output clock. Better jitter performance can be achieved if the pPLL05 has its own analog power supply.
pPLL05 integrates easily into any SoC design and includes all the views and models required by back end flows.
The pPLL05 is built using Perceptia’s second generation all digital PLL technology. This robust technology delivers identical performance across many processes, regardless of PVT conditions. It consumes a small fraction of the area of an analog PLL whilst maintaining comparable performance.
pPLL05 can be used as an integer-N PLL or as a fractional-N PLL. The fractional-N mode provides a high flexibility to choose the best combination of input and output clock frequencies at the system level.
Perceptia further provides integration support and offers customization and migration services.
查看 Low Voltage, Low Power Fractional-N PLL 详细介绍：
- 查看 Low Voltage, Low Power Fractional-N PLL 完整数据手册
- 联系 Low Voltage, Low Power Fractional-N PLL 供应商

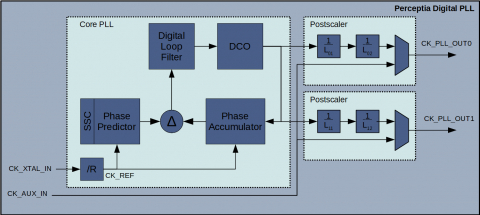

Block Diagram of the Low Voltage, Low Power Fractional-N PLL
