12-Bit Low Power Successive-Approximation ADC - 37.5 MS/s - GlobalFoundries 40nm
This 12-Bit Successive-Approximation ADC is a charge-redistribution successive-approximation type converter, and it is suitable to operate in a time-interleaved ADC to enable higher sample-rates. As an example, this ADC is applied in a 2.5 GS/s ADC system. The key feature of this 12-Bit Successive-Approximation ADC is its low power consumption. Next to this, the full-scale range is programmable and its area is small. The 12-Bit Successive-Approximation ADC is silicon proven. The 2.5 GS/s ADC system in which this ADC is applied fulfills all mass-production consumer electronics requirements.
查看 Low Power Successive-Approximation ADC 37.5 MS/s 12-Bit 详细介绍：
- 查看 Low Power Successive-Approximation ADC 37.5 MS/s 12-Bit 完整数据手册
- 联系 Low Power Successive-Approximation ADC 37.5 MS/s 12-Bit 供应商

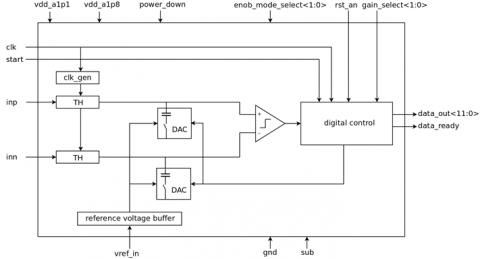

Block Diagram of the Low Power Successive-Approximation ADC 37.5 MS/s 12-Bit
