Low Power 300-600 MHz programmable PLL
The WEAPLL400M22 is a low power integer PLL operating at a single 0.8 V power supply. This PLL has a wide programmable frequency range operation operating from 300 MHz up to 600 MHz. The VCO outputs are coming into 8 cascaded phases. The PLL needs a sourcing current of 2 uA in order to operate. In the PLL logic, scan chain has been implemented for complete IP testability.
查看 Low Power 300-600 MHz programmable PLL 详细介绍:
- 查看 Low Power 300-600 MHz programmable PLL 完整数据手册
- 联系 Low Power 300-600 MHz programmable PLL 供应商

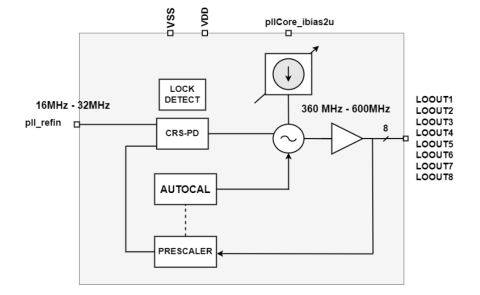

Block Diagram of the Low Power 300-600 MHz programmable PLL
