LIN Bus Master/Slave Controller Core
Implements a communication controller that transmits and receives complete Local Interconnect Network (LIN) frames to perform serial communication according to the LIN Protocol Specification.
The LIN controller can be implemented as a master or as a slave and operate on LIN 1.3, 2.0, 2.1 or 2.2 LIN network. It uses a single master/multiple slave concept for message transfer between nodes of the LIN network. The message transfer can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus.
The LIN-CTRL is used to interface sensors and actuators in a variety of applications such as automotive, industrial, and home appliances.
The core is a microcode-free design developed for reuse in ASIC and FPGA implementations. The scan-ready design is strictly synchronous with positive-edge clocking and no internal tri-states. The robustly verified core has been production-proven multiple times.
The LIN-CTRL core is available in two versions: Standard, and Safety-Enhanced. The Safety-Enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The Safety-Enhanced versions are certified as ISO-26262 ASIL-D Ready. More ISO-26262
The LIN controller can be implemented as a master or as a slave and operate on LIN 1.3, 2.0, 2.1 or 2.2 LIN network. It uses a single master/multiple slave concept for message transfer between nodes of the LIN network. The message transfer can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus.
The LIN-CTRL is used to interface sensors and actuators in a variety of applications such as automotive, industrial, and home appliances.
The core is a microcode-free design developed for reuse in ASIC and FPGA implementations. The scan-ready design is strictly synchronous with positive-edge clocking and no internal tri-states. The robustly verified core has been production-proven multiple times.
The LIN-CTRL core is available in two versions: Standard, and Safety-Enhanced. The Safety-Enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The Safety-Enhanced versions are certified as ISO-26262 ASIL-D Ready. More ISO-26262
查看 LIN Bus Master/Slave Controller Core 详细介绍：
- 查看 LIN Bus Master/Slave Controller Core 完整数据手册
- 联系 LIN Bus Master/Slave Controller Core 供应商

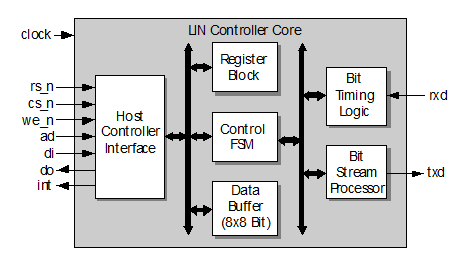

Block Diagram of the LIN Bus Master/Slave Controller Core
