LDO Voltage Regulator, 250 mA, Adjustable 0.45 V to 0.9 V Output
The LDO IP is a 1.2V low-quiescent-current adjustable output voltage Low-Drop-Out (LDO) Linear Regulator implemented in the TSMC 3nm N3P CMOS process technology. Its low sleep current, 250 mA maximum current, output voltage adjustability and precision make it especially suitable for use as an integrated voltage regulation source for subsystems implemented in analog, digital, mixed-signal and RF ASICs and SoCs.
查看 LDO Voltage Regulator, 250 mA, Adjustable 0.45 V to 0.9 V Output 详细介绍：
- 查看 LDO Voltage Regulator, 250 mA, Adjustable 0.45 V to 0.9 V Output 完整数据手册
- 联系 LDO Voltage Regulator, 250 mA, Adjustable 0.45 V to 0.9 V Output 供应商

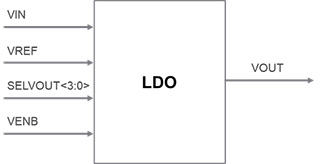

Block Diagram of the LDO Voltage Regulator, 250 mA, Adjustable 0.45 V to 0.9 V Output
